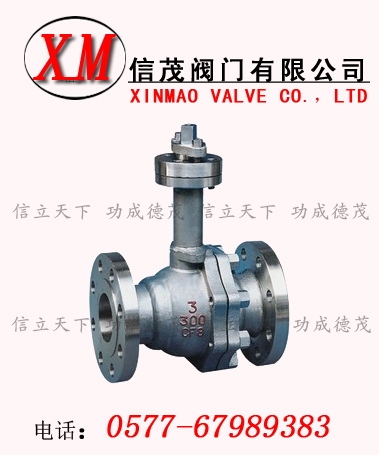

法兰低温球阀-DQ41F法兰低温球阀分为低温浮动球和低温固定球两类,用于截断或接通管路中的低温介质,介质最低温度不得低于-196度。
执行标准 Administer Standard
|
设计与制造
Design and Manufacture
|
结构长度
Face To Face
|
法兰尺寸
Flange Dimension
|
压力-温度
Pressure Temperature Lating
|
试验-检验
Inspection And Test
|
|
GB122237
|
GB12221
|
GB9113 JB79
|
GB9131
|
GB/T13927 JB/T9092
|
法兰低温球阀-DQ41F法兰低温球阀压力试验 Pressure Test
|
公称压力NominalPressure
|
1.6
|
2.5
|
4.0
|
|
强度试验
Shell Test
|
2.4
|
3.8
|
6.0
|
|
水密封试验
Water Seal Test
|
1.8
|
2.8
|
4.4
|
|
气密封试验
Air Seal Test
|
0.4-0.7
|
法兰低温球阀-DQ41F法兰低温球阀主要零件材料及性能 Main Part Materials and Property
|
阀体
Body
|
WCB
|
ZG1Cr18Ni9Ti
|
CF8
|
CF3
|
ZG1Cr18Ni12Mo2Ti
|
CF8M
|
CF3M
|
|
球体 阀杆
Ball Stem
|
2Cr13
|
1Cr18Ni9Ti
|
304
|
304L
|
1Cr18Ni12Mo2Ti
|
316
|
316L
|
|
阀 座
Seat
|
聚四氟乙烯PTFE 加坡纤增强聚四氟乙烯PTFE+Glass 对位聚笨PPL
|
|
垫片
Shim
|
聚四氟乙烯PTFE 不锈钢/柔性石墨Stainless Steel/flexible Graphite 齿形垫片Tooth Profile Gasket
|
|
阀杆座
Stem Seat
|
聚四氟乙烯PTFE 不锈钢/柔性石墨 Stainless Steel/Flexible Graphite
|
|
填料
Packing
|
聚四氟乙烯PTFE 增强柔性石墨 Enhanced Flexible Graphite
|
|
填料压盖
Gland
|
WCB
|
1Cr18Ni9Ti
|
304
|
304L
|
1Cr18Ni12Mo2Ti
|
316
|
316L
|
|
温度
Temperature
|
-40～150
|
|
介质
Medium
|
水 蒸汽 油品
Water steam
Oil goods
|
硝酸类 Nitric Acid
|
强氧化介质
strongey oxidable medium
|
醋酸类 Acetic Acid
|
尿素类 Urea
|
法兰低温球阀-DQ41F法兰低温球阀规格 主要尺寸 Size Main Dimensions
|
1.6MPa
|
DN
|
L
|
D
|
D1
|
D2
|
b
|
n-φd
|
H
|
D0
|
|
凸面法兰
RF
DQ41
16C
16P
16R
|
15
|
130
|
95
|
65
|
45
|
14
|
4-14
|
78
|
140
|
|
20
|
140
|
105
|
75
|
55
|
14
|
4-14
|
84
|
160
|
|
25
|
150
|
115
|
85
|
65
|
14
|
4-14
|
95
|
180
|
|
32
|
165
|
135
|
100
|
78
|
16
|
4-18
|
150
|
250
|
|
40
|
180
|
145
|
110
|
85
|
16
|
4-18
|
150
|
300
|
|
50
|
200
|
160
|
125
|
100
|
18
|
4-18
|
170
|
350
|
|
65
|
220
|
180
|
145
|
120
|
20
|
4-18
|
195
|
350
|
|
80
|
250
|
195
|
160
|
135
|
20
|
8-18
|
215
|
400
|
|
100
|
280
|
215
|
180
|
155
|
20
|
8-18
|
250
|
500
|
|
125
|
320
|
245
|
210
|
185
|
22
|
8-18
|
265
|
600
|
|
150
|
360
|
280
|
240
|
210
|
24
|
8-23
|
270
|
800
|
|
200
|
400
|
335
|
295
|
265
|
26
|
12-23
|
330
|
1200
|
|
2.5MPa
|
15
|
130
|
95
|
65
|
45
|
16
|
4-14
|
103
|
140
|
|
凸面法兰
RF
DQ41
25
25P
25R
|
20
|
140
|
105
|
75
|
55
|
16
|
4-14
|
112
|
160
|
|
25
|
150
|
115
|
85
|
65
|
16
|
4-14
|
123
|
180
|
|
32
|
165
|
135
|
100
|
78
|
18
|
4-18
|
150
|
250
|
|
40
|
180
|
145
|
110
|
85
|
18
|
4-18
|
156
|
300
|
|
50
|
200
|
160
|
125
|
100
|
20
|
8-18
|
172
|
350
|
|
65
|
220
|
180
|
145
|
120
|
22
|
8-18
|
197
|
350
|
|
80
|
250
|
195
|
160
|
135
|
22
|
8-23
|
222
|
400
|
|
100
|
280
|
230
|
190
|
160
|
24
|
8-23
|
253
|
500
|
|
125
|
320
|
270
|
220
|
188
|
28
|
8-25
|
275
|
600
|
|
150
|
360
|
300
|
250
|
218
|
30
|
8-25
|
286
|
800
|
|
200
|
400
|
360
|
310
|
278
|
34
|
12-25
|
340
|
1200
|
法兰低温球阀-DQ41F法兰低温球阀规格 主要尺寸 Size Main Dimensions
|
4.0MPa
|
DN
|
L
|
D
|
D1
|
D2
|
D6
|
b
|
n-φd
|
H
|
D0
|
|
凹凸法兰
MFM
DQ41
40
40P
40R
|
15
|
130
|
95
|
65
|
45
|
40
|
16
|
4-14
|
103
|
140
|
|
20
|
140
|
105
|
75
|
55
|
51
|
16
|
4-14
|
112
|
160
|
|
25
|
150
|
115
|
85
|
65
|
58
|
16
|
4-14
|
123
|
160
|
|
32
|
180
|
135
|
100
|
78
|
66
|
18
|
4-18
|
150
|
250
|
|
40
|
200
|
145
|
110
|
85
|
76
|
18
|
4-18
|
156
|
250
|
|
50
|
220
|
160
|
125
|
100
|
88
|
20
|
4-18
|
172
|
350
|
|
65
|
250
|
180
|
145
|
120
|
110
|
22
|
8-18
|
197
|
350
|
|
80
|
280
|
195
|
160
|
135
|
121
|
22
|
8-18
|
222
|
450
|
|
100
|
320
|
230
|
190
|
160
|
150
|
24
|
8-23
|
253
|
450
|
|
125
|
400
|
270
|
220
|
188
|
176
|
28
|
8-25
|
275
|
600
|
|
150
|
400
|
300
|
250
|
218
|
204
|
30
|
8-25
|
286
|
800
|
|
200
|
550
|
375
|
320
|
282
|
260
|
38
|
12-30
|
340
|
1200
|
|
6.4MPa
|
15
|
165
|
105
|
75
|
55
|
40
|
18
|
4-14
|
105
|
140
|
|
凹凸法兰
MFM
DQ41
64
64P
64R
|
20
|
190
|
125
|
90
|
68
|
51
|
20
|
4-18
|
125
|
160
|
|
25
|
216
|
135
|
100
|
78
|
58
|
22
|
4-18
|
135
|
250
|
|
32
|
229
|
150
|
110
|
82
|
66
|
24
|
4-23
|
150
|
350
|
|
40
|
241
|
165
|
125
|
95
|
76
|
24
|
4-23
|
165
|
350
|
|
50
|
292
|
175
|
135
|
105
|
88
|
26
|
4-23
|
175
|
450
|
|
65
|
330
|
200
|
160
|
130
|
110
|
28
|
8-23
|
200
|
450
|
|
80
|
356
|
210
|
170
|
140
|
121
|
30
|
8-23
|
210
|
600
|
|
100
|
432
|
250
|
200
|
168
|
150
|
32
|
8-25
|
250
|
700
|
|
125
|
508
|
295
|
240
|
202
|
176
|
36
|
8-30
|
295
|
1100
|
|
150
|
559
|
340
|
280
|
240
|
204
|
38
|
8-34
|
340
|
1500
|
法兰低温球阀-DQ41F法兰低温球阀 网址：www.zjxmfm.com |
