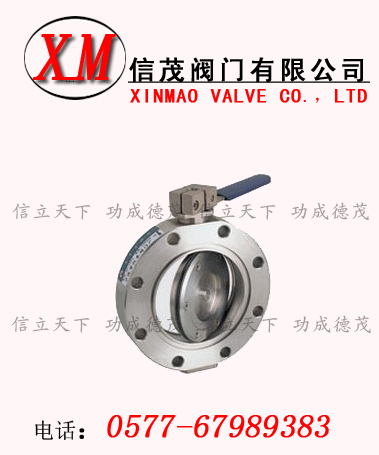

高真空蝶阀-GID高真空蝶阀主要技术性能
|
适用范围：Applicability
|
105～1.3×10-4Pa
|
|
阀门漏率：Valve Leak Rate
|
≤1.3×10-4Pa.L/S.
|
|
适用温度：Applicable Temperature
|
-25～+80℃(丁腈橡胶)
-30～+150℃(氟橡胶)
|
|
气源压力：Mains Voltage
|
0.4～0.6MPa
|
|
安装方向：Mounting Direction
|
任意
|
高真空蝶阀-GID高真空蝶阀主要零件材料
阀体、阀盖、阀杆：碳钢或不锈钢
密封件：丁腈橡胶、氟橡胶
高真空蝶阀-GID高真空蝶阀外形及连接尺寸(mm)
|
Model
型号
|
DN
|
D
|
Do
|
D1
|
B
|
H
|
B1
|
L
|
n-φc
|
|
GID-40
|
40
|
85
|
70
|
44
|
22
|
162
|
90
|
104
|
4-φ7
|
|
GID-50
|
50
|
110
|
90
|
55
|
22
|
175
|
90
|
104
|
4-φ7
|
|
GID-65
|
65
|
125
|
105
|
70
|
26
|
198
|
102
|
140
|
4-φ9
|
|
GID-80
|
80
|
145
|
125
|
85
|
30
|
208
|
102
|
140
|
4-φ9
|
|
GID-100
|
100
|
170
|
145
|
105
|
30
|
220
|
102
|
140
|
4-φ12
|
|
GID-150
|
150
|
220
|
195
|
156
|
35
|
272
|
115
|
164
|
8-φ12
|
|
GID-200
|
200
|
275
|
250
|
208
|
40
|
330
|
205
|
190
|
8-φ12
|
|
GID-250
|
250
|
330
|
300
|
258
|
45
|
335
|
205
|
190
|
8-φ14
|
|
GID-300
|
300
|
380
|
350
|
308
|
55
|
426
|
152
|
247
|
8-φ14
|
|
GID-400
|
400
|
500
|
465
|
410
|
60
|
520
|
180
|
308
|
8-φ18
|
|
GID-500
|
500
|
600
|
565
|
510
|
80
|
643
|
220
|
378
|
12-φ18
|
|
GID-600
|
600
|
710
|
670
|
610
|
100
|
760
|
270
|
524
|
12-φ21
|
|
GID-800
|
800
|
920
|
815
|
815
|
130
|
962
|
320
|
648
|
20-φ21
|
|
GID-1200
|
1200
|
1440
|
1280
|
1280
|
150
|
1360
|
385
|
1480
|
36-φ19
|
|
